Lilliput A7S 7-inch HDMI IPS Full HD On Camera Field Monitor for Video Filming

• 7" 16:10 8bit IPS LCD panel with 1920x1200 native resolution (324ppi), enjoy sharper, more detailed image with richer colours than ever before.
• 1000:1 high contrast. 500cd/㎡ high brightness and 170° wide viewing angles, for the excellent viewing experience.
• 4K HDMI Input Output, 3840x2160P (30/29.97/25/24/23.98Hz), 4096x2160P (24Hz). HDMI signal can loop output to the other monitor or device when HDMI signal input to A7S, The HDMI cable in the package is HDMI to MINI HDMI cable. That cable can work with most DSLR. If a customer uses a Panasonic GH5, then the camera will need an HDMI to HDMI cable. Sony A7 serial cameras need HDMI to micro HDMI cable.
• A7s provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false colour and audio level meter. F1 & F2 user-definable buttons to custom auxiliary functions as a shortcut, such as peaking, underscan and check field. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.

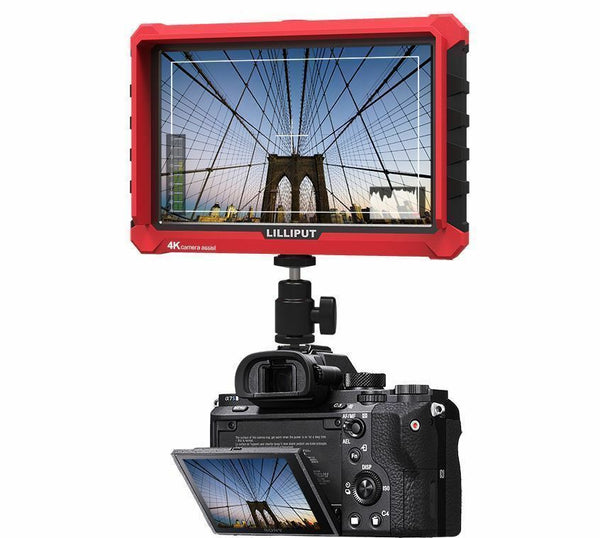

• 75mm VESA and hot shoe mounts to fix A7s on top of a camera or camcorder. 20.5mm thickness and 320g weight, which make great convenient for the cameraman in outdoor or handheld applications.
• Durable Protection, a silicon rubber case with sunshade is included, providing an overall protection from a drop, shock, sunlight and bright light environment.

Support 4K HDMI input/output, The 4K HDMI output frequency should be set under 30Hz. For example, Panasonic GH5 frequency can be set to 24Hz.

• 3840x2160P (30/29.97/25/24/23.98Hz)
• 4096x2160P (24Hz)

Package Contents:

• Lilliput A7s monitor x 1
• Foldable sunshade x 1
• Silicon rubber case x 1
• F970 battery plate (Battery not included) x 1
• HDMI A/C cable(HDMI to mini HDMI) x 1
• Hot shoe mount x 1
• Packing box x 1

F970 battery plate can be used with F550, F750, F970 battery. An F550 battery will work about 2 hours, an F750 will work about 4 hours and an F970 battery will last about 6 hours.

The cable included is HDMI to mini HDMI cable which is compatible with most new DSLR cameras. But it's not the cable for a Sony A7, A7S series and Panasonic GH5. If a customer is using Sony A7 A7S series (HDMI to Micro HDMI cable) or Panasonic GH5 (HDMI to HDMI cable ), please get a suitable cable separately.

Specifications:

• DISPLAY
    Display Screen   7" 8bit IPS
    Physical Resolution   1920×1200
    Aspect Ratio   16:10
    Brightness   500cd/m2
    Contrast   1000:1
    Viewing Angle   170°/170°(H/V)
• INPUT
    HDMI   1
• OUTPUT
    HDMI   1
• AUDIO
    Speaker   1
    Ear Phone Slot   1
• HDMI FORMAT
    4K ~ Full HD ~ SD   4K 30Mhz ,1080p, 1080i, 720p, 576p, 576i, 480p, 486i
• POWER
    Current   1A
    Input Voltage   DC 7-24V
    Battery Plate   F970
    Power Consumption   ≤12W
• ENVIRONMENT
    Operating Temperature   -20℃～60℃
    Storage Temperature   -30℃～70℃
• DIMENSION
    Dimension(LWD)   182.1×124×20.5mm
    Weight   320g
