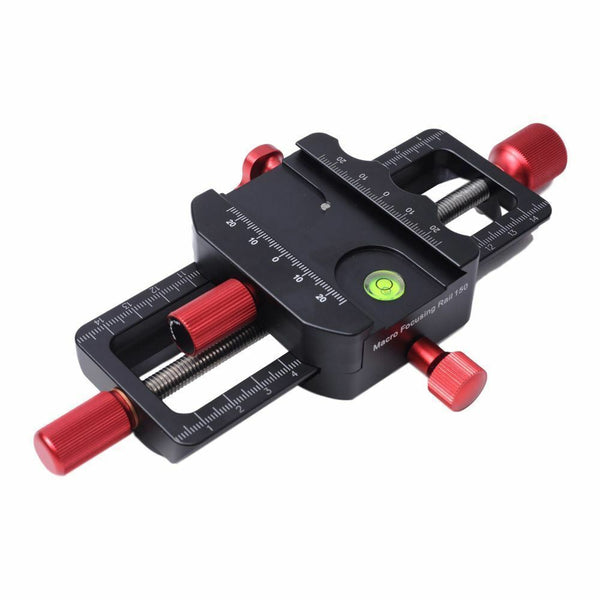

iShoot MFR150 Aluminium Macro Focusing Rail Slider AS/RRS Compatible

• Main body made of Aviation Aluminum, CNC precisely machined, surface anodized, the maximum size with knob is about 203mm long, 106mm wide, and 34mm high, net weight is about 420g
• With stainless steel movement lever, stainless steel clutch and intermeshing helical power transmission, it can move back and forth precisely for fine-adjustment focusing, convenient for close-up photography of micro objects, the tested maximum horizontal load weight is about 3.4kg
• The width of the clamp on the slider is about 73mm, with spirit level, Arca-Swiss / RRS standard fit; the slider is about 150mm long, bottom is designed with quick release plate structure of Arca-Swiss / RRS standard fit;
• Compatible with Arca-Swiss / RRS / KIRK / WIMBERLEY / MARKINS / SUNWAYFOTO / KANGRINPOCHE / BENRO/SIRUI / MARSACE quick release plate and ballhead of Arca-Swiss / RRS standard fit; suitable for IS-JZ30 / IS-JZ50 / IS-JZ64 / IS-QJ58 / IS-QJ64 / IS-JZ60BK / IS-JZ70BK / IS-JZ80BK

Specifications:

Dimension: about 203mm long, 106mm wide, and 34mm high (including knob)
Net weight: about 420g
Slide length: about 150mm
Adjustment range: about 118mm
Movement: about 1mm/circle
Maximum load: about 3.4kg

Matters Needing Attention:

• Do not over extend the slider to prevent the clamp come off from the slider
• The clutch is only used in the fast adjustment; please pay attention to the gear when using, keep the gear clean
• When only using one slider, using it with a ballhead is recommended; when using two in combination, using with a ballhead would be more convenient.

Package includes:

1 x iShoot MFR150 All Metal 150mm Macro Focusing Rail Slider
(Note: The slider need be used with quick release plate which is not included in the listing)
