Boya BY-WM6R + BY-WXLR8 Kit Wireless Microphone Audio System Interview Recording

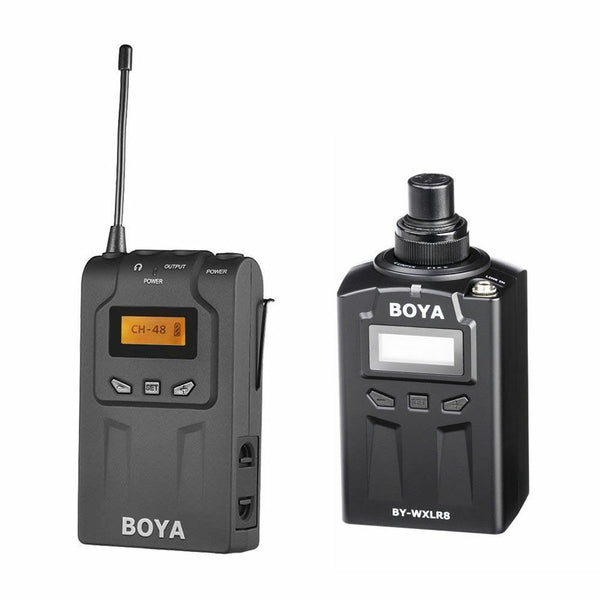

This kit includes BOYA BY-WXLR8 transmitter and BY-WM6R receiver.

The BOYA BY-WXLR8 Plug-on XLR Audio Transmitter allows you to connect any XLR microphone or audio mixer to the BY-WM8 Wireless Microphone System. The BY-WXLR8 provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, electronic news gathering (ENG), - or anyone who needs mobile, dependable audio broadcasting and recording.
The BOYA BY-WXLR8 is a compact XLR plug-on type transmitter features a wide switching RF bandwidth, an easy-to-read LCD display and mute function.

BY-WXLR8 Features:

• Allows you to connect any XLR microphone to the BY-WM8 and BY-WM6 Wireless Microphone System
• Available for bodypack and handheld recording
• Powered by 2 AA batteries ( not Included)
• Easy-to-read LCD display
• With light indicator for battery power and working status
• With A & B channel, 48 each; Wide frequency range effectively avoid signal interference
• Support Mono/ Stereo tone, Volume adjustable; support Mute

BY-WXLR8 Specifications:

• Oscillator type: PLL Synthesizer Carrier
• Operation range: 100m
• Channel number: 48 Channel
• Group: A and B
• Carrier Frequency Range: 584 MHz-608 MHz (Transmitter A)
• Carrier Frequency Range: 576 MHz-599 MHz (Transmitter B)
• Audio input connector: XLR Type (Female)
• No External Power Supply is available
• Battery: 2 AA size batteries(not included)
• Battery life: Approx. 3.0 hours
• Dimensions: 60mm x 86mm x28mm (W/H/D)/(2.36 x 3.3 x 1.1 inches)
• Weight: 136g (4.37oz) (Without battery)

The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately). The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video capable cameras. For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder. The beltpack can be wirelessly synced with the transmitter for quick setup, and also offers simple menu operation with an illuminated graphic display for more control options.

BY-WM6R Features:

• UHF Receiver with 48 channels
• The BOYA BY-WM6R has a standard 3.5mm headphone jack
• Wirelessly syncs with a transmitter for easy setup
• Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
• OLED Display
• Operation range can reach up to 100m
• Powered by one Two AA Batteries(Batteries are not included)
• Includes 3.5mm locked-plug audio cable.
• Includes shoe mount

BY-WM6R Specifications:

• Oscillator Type: PLL Synthesized Control Oscillator
• Carrier Frequency Range: 576MHz-599MHz
• Channels: 48
• Frequency Respond: 100m(without obstacle)
• Operating Temperature: 14°F to 122°F(-10℃ to +50℃)
• Storage Temperature: 14°F to 131°F(-10℃ to +55℃)
• Antenna: Flexible
• Audio Input Connector: 3.5mm mini jack
• Signal-to-noise Ratio: 80dB
• Distortion: 0.8%(-60 dBV, 1 KHz input)
• Earphone Output Level: 60mW, 32 Ohms/1KHz
• Audio Output Level: 120mV
• Power Supply: 2 AA batteries(not included)
• Item Size: 7.7” x 3.1” x 1.1”(19.6 x 8.0 x 2.9cm)
• Item Weight(without batteries): 130g (4.6 oz)

Package Contents:

• BY-WXLR8 UHF Wireless XLR Transmitter x 1
• Case x 1
• BY-WM6 Receiver x 1
• Shoe Mount Adapter x 1
• XLR Output Cable x 1
• Stereo 3.5mm Mini Plug Cable x 1
• User Manual (English)
