Boya BY-WM6R + BY-WXLR8 + BY-HM100 Kit Wireless Microphone Audio System

Product model: WM6-K3

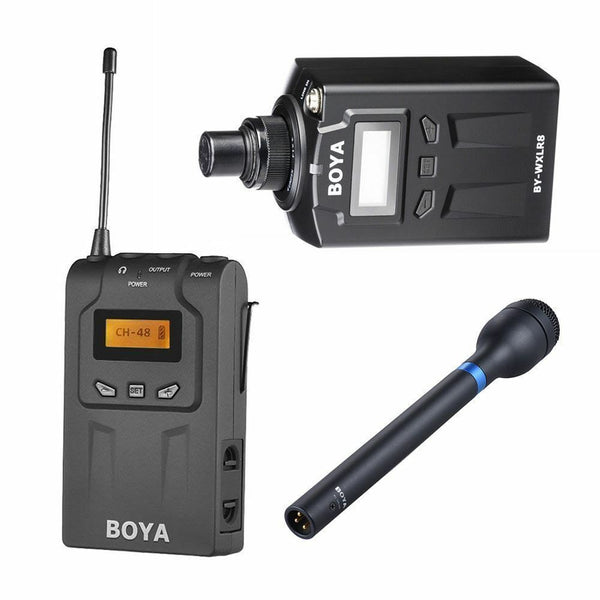

This kit includes BOYA BY-WXLR8 transmitter, BY-WM6R receiver and BY-HM100 handheld microphone.

The BOYA BY-WXLR8 Plug-on XLR Audio Transmitter allows you to connect any XLR microphone or audio mixer to the BY-WM8 Wireless Microphone System. The BY-WXLR8 provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, electronic news gathering (ENG), - or anyone who needs mobile, dependable audio broadcasting and recording. The BOYA BY-WXLR8 is a compact XLR plug-on type transmitter features a wide switching RF bandwidth, an easy to read LCD display and mute function.

BY-WXLR8 Features:

Allows you to connect any XLR microphone to the BY-WM8 and BY-WM6 Wireless Microphone System
Available for bodypack and handheld recording
Powered by 2 AA batteries ( not Included)
Easy-to-read LCD display
With light indicator for battery power and working status
With A & B channel, 48 each; Wide frequency range effectively avoid signal interference
Support Mono/ Stereo tone, Volume adjustable; support Mute

BY-WXLR8 Specifications:

Oscillator type: PLL Synthesizer Carrier
Operation range: 100m
Channel number: 48 Channel
Group: A and B
Carrier Frequency Range: 584 MHz-608 MHz (Transmitter A)
Carrier Frequency Range: 576 MHz-599 MHz (Transmitter B)
Audio input connector: XLR Type (Female)
No External Power Supply is available
Battery: 2 AA size batteries(not included)
Battery life: Approx. 3.0 hours
Dimensions: 60mm x 86mm x28mm (W/H/D)/(2.36 x 3.3 x 1.1 inches)
Weight: 136g (4.37oz) (Without battery)

The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately). The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video capable cameras. For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder. The beltpack can be wirelessly synced with the transmitter for quick setup, and also offers simple menu operation with an illuminated graphic display for more control options.

BY-WM6R Features:

UHF Receiver with 48 channels
The BOYA BY-WM6R has a standard 3.5mm headphone jack
Wirelessly syncs with a transmitter for easy setup
Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
OLED Display
Operation range can reach up to 100m
Powered by one Two AA Batteries(Batteries are not included)
Includes 3.5mm locked-plug audio cable.
Includes shoe mount

BY-WM6R Specifications:

Oscillator Type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 576MHz-599MHz
Channels: 48
Frequency Respond: 100m(without obstacle)
Operating Temperature: 14°F to 122°F(-10℃ to +50℃)
Storage Temperature: 14°F to 131°F(-10℃ to +55℃)
Antenna: Flexible
Audio Input Connector: 3.5mm mini jack
Signal-to-noise Ratio: 80dB
Distortion: 0.8%(-60 dBV, 1 KHz input)
Earphone Output Level: 60mW, 32 Ohms/1KHz
Audio Output Level: 120mV
Power Supply: 2 AA batteries(not included)
Item Size: 7.7” x 3.1” x 1.1”(19.6 x 8.0 x 2.9cm)
Item Weight(without batteries): 130g (4.6 oz)

The BOYA BY-HM100 is an Omni-directional handheld microphone, it can use for many fields, such as interview and presentation, the frequency response of the mic (70 Hz¨C15 kHz) has been specially tailored for voice reproduction to maximize clarity, reduce plosive and wind noise, and also minimalize unnecessary low frequencies greatly.

BY-HM100 Features:

Handheld dynamic mic with XLR connector, no need extra battery or phantom power.
Omni-directional pickup pattern, tailored frequency response(70Hz-15kHz) for speech.
Isolated capsule reduces handling noise and makes the sound more clear.
Durable aluminum alloy body and extra long handle.
Ideal for ENG, interviews, presentation, etc.
Comes with a pouch for convenient storage and carry.

BY-HM100 Specifications:

Acoustic Principle: Dynamic
Polar Pattern: Omni-directional
Frequency Range: 70Hz-15000Hz
Output Impedance: 200Ω±30% at 1kHz
Sensitivity: -56dB re 1V/Pa(1.0mV@94dB SPL) ±3dB @ 1kHz
Output Connector: XLR
Mic Weight: 230g / 8.1oz
Mic Length: 17cm / 6.7in
Package Size: 31.5 x 12 x 5.5cm / 12.4 x 4.7 x 2.2in
Package Weight: 490g / 17.3oz

Package Contents:

BY-HM100 Microphone x 1
Pouch x 1
BY-WXLR8 UHF Wireless XLR Transmitter x 1
Case x 1
BY-WM6 Receiver x 1
Shoe Mount Adapter x 1
XLR Output Cable x 1
Stereo 3.5mm Mini Plug Cable x 1
User Manual (English)
