Boya BY-WM6R + BY-WHM8 Kit Wireless Handheld Microphone Audio System broadcast

Product model: WM6-K2

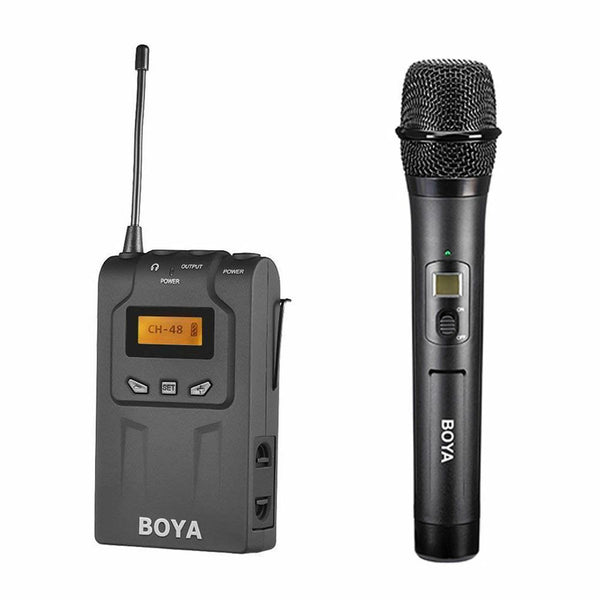

This kit includes BY-WHM8 handheld transmitter and BY-WM6R receiver.

The BY-WHM8 is a Wireless handheld microphone transmitter with a dynamic, cardioid capsule, suitable for BOYA BY-WM6 and BY-WM8 wireless receiver. Allows you to connect any XLR microphone the the BY-WM6 and BY-WM8 wireless receiver. It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line/MIX switchable inputs, and digital circuitry, rugged lightweight plastic housing, and it’s suitable for DSLR cameras for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.

BY-WHM8 Features:

BOYA- BY-WHM8 is a wireless dynamic handheld microphone transmitter designed for BY-WM6, BY-WM8 microphone system
ABS Construction - Made of very strong ABS plastic, makes the microphone lightweight and portable
24 MHz bandwidth
Wireless Range - 328 ft (100m) makes your recording free from the distance and bring much convenience in many situation that requires wireless recording
Features an OLED display with information on level, battery status, mute, and channel selection.
Power the transmitter via AA batteries, rechargeable NiMH batteries.
The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
Multi-use Senario - For professional interview, presentation, speech, wedding, stage performance, live vocals, business meetings etc

BY-WHM8 Specifications:

Microphone unit: Dynamic
Directivity: Unidirectional
Carrier Frequency Range: 576.4 MHz-599.9 MHz (Channel group: A ), 568.6 MHz-592.1 MHz (Channel group: B )
RF output power: ≤10 mW
Signal-to-noise ratio: 80 dB
Dimensions: 5.3 x 5.3 x 25.6cm
Weight: 252g (without batteries)

The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately). The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video capable cameras. For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder. The beltpack can be wirelessly synced with the transmitter for quick setup, and also offers simple menu operation with an illuminated graphic display for more control options.

BY-WM6R Features:

UHF Receiver with 48 channels
The BOYA BY-WM6R has a standard 3.5mm headphone jack
Wirelessly syncs with a transmitter for easy setup
Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
OLED Display
Operation range can reach up to 100m
Powered by one Two AA Batteries(Batteries are not included)
Includes 3.5mm locked-plug audio cable.
Includes shoe mount

BY-WM6R Specifications:

Oscillator Type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 576MHz-599MHz
Channels: 48
Frequency Respond: 100m(without obstacle)
Operating Temperature: 14°F to 122°F(-10℃ to +50℃)
Storage Temperature: 14°F to 131°F(-10℃ to +55℃)
Antenna: Flexible
Audio Input Connector: 3.5mm mini jack
Signal-to-noise Ratio: 80dB
Distortion: 0.8%(-60 dBV, 1 KHz input)
Earphone Output Level: 60mW, 32 Ohms/1KHz
Audio Output Level: 120mV
Power Supply: 2 AA batteries(not included)
Item Size: 7.7” x 3.1” x 1.1”(19.6 x 8.0 x 2.9cm)
Item Weight(without batteries): 130g (4.6 oz)

Package Contents:

BY-WHM8 Transmitter x 1
Case x 1
BY-WM6 Receiver x 1
Shoe Mount Adapter x 1
XLR Output Cable x 1
Stereo 3.5mm Mini Plug Cable x 1
User Manual (English)
